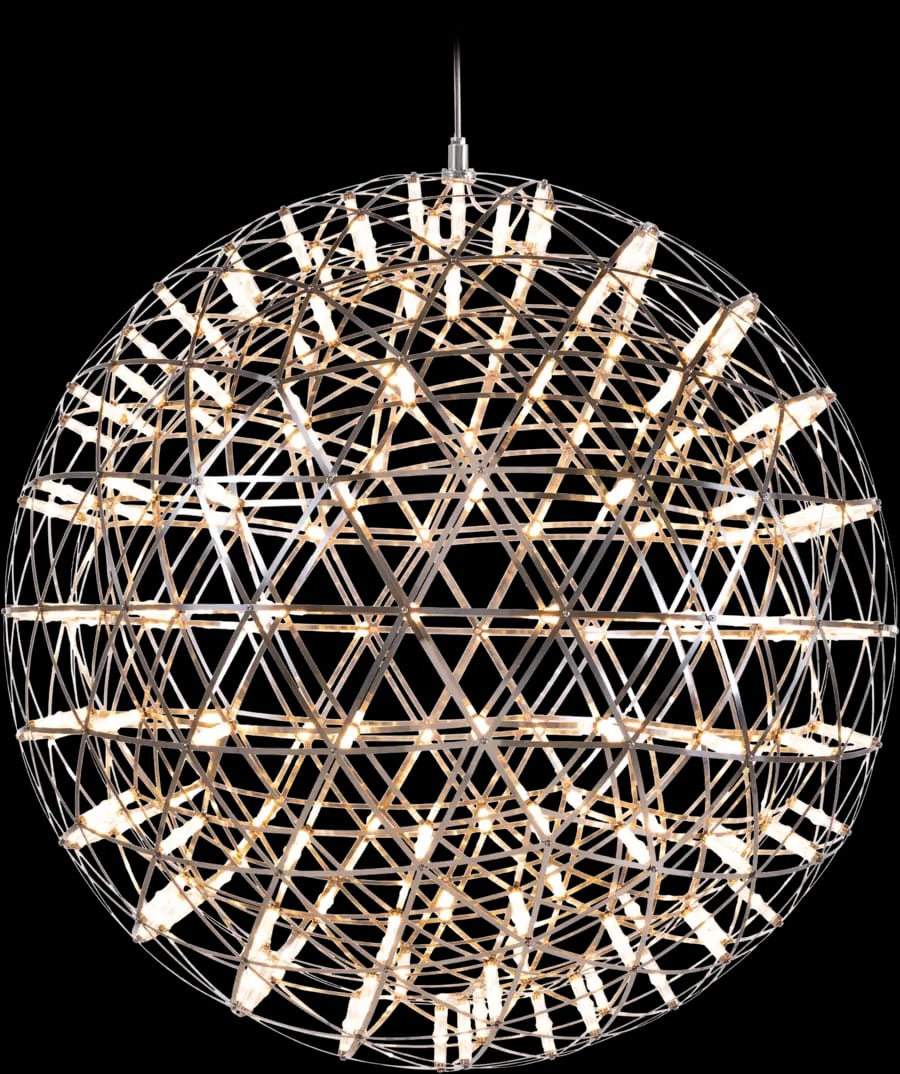

The Raimond lights: perfect spheres of mathematical ingredients punctuated by tiny LED lights. Designer Raimond Puts was not only intrigued by the shape of the geodesic dome, but also with the mystery of prime numbers. It’s no coincidence that the dimension of all Raimond lights resemble a prime number. The result of mathematical perfection, that brings the starry night sky into your home.
Compatible with our Wireless Wall Switch, for quick and easy dimming that gives you full control over the light output.

Raimond Puts

DALI dt6

The luminaire is dimmable by integrating it into a DALI network. This is an universal and professional standard in home automation systems with endless control possibilities and ease. We advise to hire a professional to integrate the luminaire into your DALI network.

Push / Pulse dim on Line Voltage

The luminaire is dimmable by using an external momentary switch or pushbutton switch. The switch is usually mounted on an existing wall socket. In some cases a Phase or Control wire needs to be added to your home's wiring. The switch should be suitable for use with line voltage and of the type 'normal off - momentary on'. The luminaire dims perfectly when the switch makes and holds contact. A short press switches between on and off.

Wireless Wall Switch

With our Wireless Wall Switch, you’ll have full control over your Moooi lighting design with one touch. Our Wireless Wall Switch comprises two components, a wall switch and radio device to put in the canopy of your Moooi lighting design. The wall switch can be integrated in System 55 or Decora style wall switches. The Wireless Wall Switch communicates via Bluetooth with the radio device in the luminaires canopy. Within moments you can enjoy full and fluent dimming, all the way to dark.

Mains / ELV dimming is not possible

Mains and/or ELV dimming is not possible. The wireless wall switch is advised for dimming in this case.

Raimond%20II_14154.pdf

Spec Sheets

Raimond%20II%20collection.pdf

D000651-A_Manual%20Raimond%20II%20R43%20R61%20R89%20%26%20ZAFU.pdf

D000919--%20Dimming%20explanation%20Ceiling%20Canopy.pdf

Manuals

Raimond-II-Detail-04.tif

Raimond-II-R43-R61-R89.tif

Raimond-II-R61-Black-Background-ON-OFF.tif

Raimond-II-R61-White-Background-ON-OFF.tif


raimond-ii-r43.eps


raimond-ii-r61.eps

raimond-ii-r89.eps


Haiku-raimond-II-tensegrity-lamp.tif

House_of_Concrete_Moooi_8.tif

Moooi-Amsterdam-Brandstore-Raimond-II-Cloud.tif

Moooi-Amsterdam-brandstore-raimond-II-something-like-this-set.tif

Moooi-Amsterdam-brandstore-the-party-something-like-this-raimond-II.tif

raimond-II-R199-applied.tif

Raimond-II-R43.tif

Images

2D Files

Moooi_Raimond_43.3ds

Moooi_Raimond_43.FBX

Moooi_Raimond_43.dxf

Moooi_Raimond_43.mtl

Moooi_Raimond_43.obj

Moooi_Raimond_43.rfa

Moooi_Raimond_43.skp

Moooi_Raimond_43.wrl

Moooi_Raimond_43_2011_Stnd.max

Moooi_Raimond_61.3ds

Moooi_Raimond_61.FBX

Moooi_Raimond_61.dxf

Moooi_Raimond_61.mtl

Moooi_Raimond_61.obj

Moooi_Raimond_61.rfa

Moooi_Raimond_61.skp

Moooi_Raimond_61.wrl

Moooi_Raimond_61_2011_Stnd.max

Moooi_Raimond_89.3ds

Moooi_Raimond_89.FBX

Moooi_Raimond_89.dxf

Moooi_Raimond_89.mtl

Moooi_Raimond_89.obj

Moooi_Raimond_89.rfa

Moooi_Raimond_89.skp

Moooi_Raimond_89.wrl

Moooi_Raimond_89_2011_Stnd.max

3D Files

Raimond_II_R43%5B1%5D.IES

Raimond_II_R61%5B1%5D.IES

Raimond_II_R61%5B1%5D.ldt

Photometric Files

The Raimond family results from mathematical perfection and years of patience and dedication.

Raimond

The Wireless Wall Switch provides the easiest way of dimming and full smooth dimming range. You have full control over your Moooi lighting design with one touch! And best of all? There’s no need to change your home’s wiring, because it works with Bluetooth (Casambi). The Wireless Wall Switch can be integrated with your existing wall switches, and it charges itself, so there’s no need for electricity.&nbsp;
Important! The Wireless Wall Switch is currently compatible with the NomNom Light, Starfall Light, Heracleum III family, Gravity Chandelier, Raimond II (all variants excluding R127-R163-R199 and Tensegrity) and the Flock of Light (all variants, but please <a href="mailto:sales@moooi.com" rel="noreferrer noopener" tabindex="-1" target="_blank">contact us</a>&nbsp;when you purchase a Flock of Light 11 or 21, because an additional component is needed).

The eldoLED 0-10 dimmer is a control device used to adjust the brightness of dimmable lighting systems that utilises the 0-10V dimming protocol. By operating the dimmer, you can smoothly adjust the lighting from 0 to 10 volts. This allows you to customise the ambiance and energy consumption in a space according to your needs. This dimmer is suitable for all Heracleum III Lights, Raimond II variants R43, R61, R89, Dome, and Zafu, and the Flock of Light 31.

Two steel spheres, interconnected with LEDs, form a thin and openwork triangular mesh that transport the electric current.

With the optional Wireless Wall Switch, dimming is made even easier. With just one click you control the lights and mood.

Raimond II
